    5KW Mitsubishi 3 phase Servo Amplifier MR-J2S-500CL Industrial AC Motor Drive 500A NEW

    Ask Lasest Price
    Brand Name : Mitsubishi
    Model Number : MR-J2S-500CL
    Certification : CE
    Price : Contact us
    Payment Terms : T/T / Paypal
    Supply Ability : 50
    Delivery Time : In Stock
    • Product Details
    • Company Profile

    5KW Mitsubishi 3 phase Servo Amplifier MR-J2S-500CL Industrial AC Motor Drive 500A NEW

    5KW Mitsubishi 3 phase Servo Amplifier MR-J2S-500CL Industrial AC Motor Drive 500A NEW


    Introduction


    The MR-J2S-CL program-compatible AC servo amplifier is based on the MR-J2S-CP AC servo amplifier with built-in positioning functions and incorporates program-driven, single-axis positioning functions. These functions perform positioning operation by creating the position data (target positions), servo motor speeds, acceleration and deceleration time constants, etc. as a program and executing the program. The servo amplifier is the most appropriate to configure a simple positioning system or to simplify a system, for example. Up to 16 programs can be created. The program capacity is 120 steps as a total of all programs. All servo motors are equipped with an absolute position encoder as standard. An absolute position detection system can be configured by merely adding a battery to the servo amplifier. Once the home position has been set, home position return is not required at power on, alarm occurrence, etc.


    Specifications


    • Manufacturer : Mitsubishi
    • Product No. : MR-J2S-500A
    • Product type : Servo Amplifier Module
    • Phase : 3 Control function : Servo Control
    • Supply voltage : 200 V ac
    • Current rating : 500 A
    • Minimum operating temperature : 0 °C
    • Maximum operating temperature : +55 °C
    • Permissible frequency fluctuation Within : 5%
    • Dynamic brake : Built-in
    • Shipping weight : 10Kg

    Corresponding servo motor type name


    • HC-SFS502
    • HC-LFS302
    • HC-RFS353
    • HC-RFS503
    • HA-LFS502
    • HC-SFS502B
    • HC-LFS302B
    • HC-RFS353B
    • HC-RFS503B
    • HC-UFS352
    • HC-UFS352B
    • HC-UFS502
    • HC-UFS502B

    MR-J2S Series Industrial Servo Drive


    1)The MR-J2S-A series
    comes with analogue and digital inputs and is excellent for all single axis applications from positioning over speed to torque control.


    2)The MR-J2S-B series
    with network bus facility is perfect for precise multiple axis synchronisation solutions. They are designed for SSCNET connection in combination with Mitsubishi A-Motion-Controllers or Q-series Motion Controllers. The motion controllers and servo amplifiers can be linked via SSCNET network.


    3)The MR-J2S-CP & MR-J2S-CL
    is a totally programmable amplifier that gives an in-expensive complete positioning solution for the smaller power range.


    Mitsubishi MR-J2S Series Servo Drive


    MR-J2S-10AMR-J2S-10BMR-J2S-10CPMR-J2S-10CL
    MR-J2S-20AMR-J2S-20BMR-J2S-20CPMR-J2S-20CL
    MR-J2S-40AMR-J2S-40BMR-J2S-40CPMR-J2S-40CL
    MR-J2S-60AMR-J2S-60BMR-J2S-60CPMR-J2S-60CL
    MR-J2S-70AMR-J2S-70BMR-J2S-70CPMR-J2S-70CL
    MR-J2S-100AMR-J2S-100BMR-J2S-100CPMR-J2S-100CL

    MR-J2S-200A

    MR-J2S-200BMR-J2S-200CPMR-J2S-200CL
    MR-J2S-350AMR-J2S-350BMR-J2S-350CPMR-J2S-350CL
    MR-J2S-500AMR-J2S-500BMR-J2S-500CPMR-J2S-500CL
    MR-J2S-700AMR-J2S-700BMR-J2S-700CPMR-J2S-700CL
    MR-J2S-11KAMR-J2S-11KBMR-J2S-10CP1MR-J2S-10CL1
    MR-J2S-15KAMR-J2S-15KBMR-J2S-20CP1MR-J2S-20CL1
    MR-J2S-22KAMR-J2S-22KBMR-J2S-40CP1MR-J2S-40CL1
    MR-J2S-30KAMR-J2S-30KBMR-J2S-10CP-S084MR-HP30KA
    MR-J2S-37KAMR-J2S-37KBMR-J2S-20CP-S084MR-HP55KA4
    MR-J2S-60A4MR-J2S-60B4MR-J2S-40CP-S084MR-J2S-100A4
    MR-J2S-100B4MR-J2S-200B4MR-J2S-60CP-S084MR-J2S-70CP-S084
    MR-J2S-350A4MR-J2S-200A4MR-J2S-350B4MR-J2S-100CP-S084
    MR-J2S-500A4MR-J2S-500B4MR-J2S-200CP-S084MR-J2S-700A4
    MR-J2S-700B4MR-J2S-350CP-S084MR-J2S-11KA4MR-J2S-11KB4
    MR-J2S-500CP-S084MR-J2S-15KA4MR-J2S-15KB4MR-J2S-700CP-S084
    MR-J2S-22KA4MR-J2S-22KB4MR-J2S-10CP1-S084MR-J2S-30KA4
    MR-J2S-40CP1-S084MR-J2S-45KA4MR-J2S-45KB4MR-J2S-55KA4
    MR-J2S-30KB4MR-J2S-20CP1-S084MR-J2S-37KA4MR-J2S-37KB4
    MR-J2S-55KB4MR-J2S-10A1MR-J2S-10B1MR-J2S-20A1
    MR-J2S-20B1MR-J2S-40A1MR-J2S-40B1MR-J2S Series

    We specialize in selling and servicing a wide range of Mitsubishi products and components:
    • MDS and MR Series AC Servo Drives
    • MDS and FR Series AC Spindle Drives
    • FR Series General Purpose Inverters and Braking Modules
    • HA / HC / HF / HP / HS Series AC Servo Motors
    • SJ Series AC Spindle Motors
    • CNC Boards
    • Power Supplies

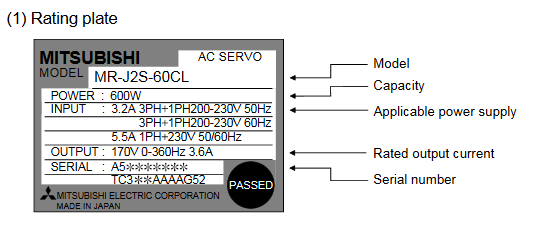

    Nameplate
    Model

    What is Details of Our Mitsubishi Parts?

    • All the Mitsubishi Parts are new and original with package.
    • Warranty time: 180 or 360 days.

    Good Service in WTL:

    > Please send your RFQ to get the latest price.

    > Normally, we will ship the items in 1-2 weeks after receive the payment.

    > We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.

    > We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.


    Liability:

    WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

    buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

    compliance to their machinery.
