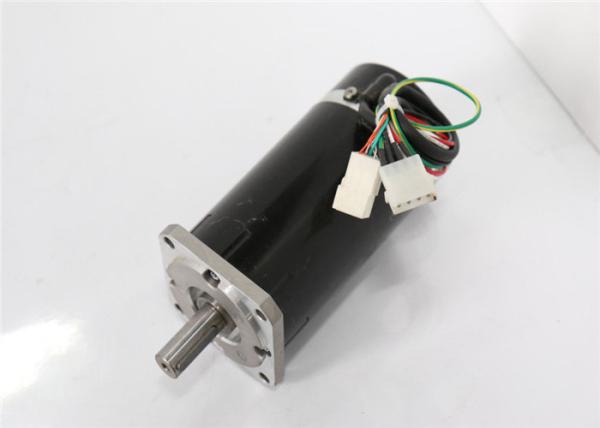

New Sankyo 800W AC Servo Motor MC801NS302KNN25 3000rpm/min Nidec
Industrial Robot Motors
Types of Sankyo Industrial AC Servo Motor
| Inertia | Low Inertia
Middle Inertia
High Inertia |
| Flange Size | 40 mm x 40 mm
60 mm x 60 mm
80 mm x 80 mm
130 mm x 130 mm |
| Rotational Speed | Rated Motor Speed / Max. [r/min]
2,000 / 3,000 [r/min]
3,000 / 6,000 [r/min] |
| IP Code | IP65
IP67 |
Hot Sales Nidec Sankyo Servo Motors (Made in Japan)
MC401NS302KNN24 R00513311401 400W
MC801AS302KNN07 R1382500701 800W
MC801NS302KNN03 R1382500901 800W
MC801AS302KNN24 R16546307H1 800W
MT320NS302KNN03 R1854230201 3000W
MF501NS302KNN31 R1683130201 500W
MC801NS302KNN26 R16503327M1 800W
MC401NS302KNN39 RFU8021SM40
MC801NS302KNN24 R16546307H1
HAILH01 R0851332001
HAILI02 R1382501001
Others Industrial Sankyo Servo Motors
| H24LK52 | MP101N2AW25 | MC801AS302KNN24 | MF501NS302KNN31 | MT302NS302KNN03 |
| H27KG57 | MC801NS302KNN03 | H37KG51 | H37LK52 | HA1LH01 |
| HA1LI02 | MC101NS302SNN01 | MC401AS302KNN38 | MC401NS302KNN24 | MC801AS302KNN07 |
| H27KG51 | MC801AS302KNN07 | MC801NS302KNN03 | MC801NS302KNN07 | MF501NS302KNN31 |
| TC0LH01 | H37LK52 | MC101NS302SNN01 | MC401NS302KNN24 | MC801AS302KNN07 |
H27LK52 | MC801NS302KNN07 | MC800NS302ANN09 | MC401NS302KNN39 | MC801AS302KNN22 |
| H24LK52 | MC401AS302KNN38 | MC401AS302KNN31 | MC800AS302ASN03 | MC801NS302KNN23 |
Installing Precautions
Never remove the encoder or dismantle the motor body.
The motor shaft has anti-rust oil applied at the shipment. Please
wipe off the oil before installing the motor. Make sure to perform
centering (alignment) carefully and properly.
Operating the motor without sufficient alignments might cause
vibrations or a shorter service life of the motor.
Industrial Servo Motor's Use Applications
Embroidery Machine,Textile Machine,Packaging Machine etc
Removal Robot
Conveyer Machine
Processing Machine
Features
Suitable for applications with high speed rotations.Can be used for
most applications.
Suitable for applications with low mechanical rigidity such as
drive belt machinery.
Connecting with a Mechanical System
When connecting the motor to a load, use a coupling to absorb
misalignments so that the motor shaft load remains.
Within the rated load to the motor shaft.
Improper use may cause a shorter service life of the motor bearing
and damage the shaft.
We recommend the use of flexible couplings.
Installation Orientations and Oil Seals
The motor can be installed either vertically or horizontally.
Please observe the following precautions.
- Horizontal installation: Face the cable pull unit down in order to
protect the motor against oil, water and dust.
- Vertical installation : For a motor combined with a decelerator
being on top of the motor shaft, use an oil sealed motor to prevent
the decelerator oil from seeping into the motor.
Low Inertia Industrial Servo Motors
Middle Inertia Industrial Servo Motors
High Inertia Industrial Servo Motors
Inertia & Flange Size & Rotational Speed & IP Code
Motor Models
Dimension
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for
Servo Drives and Motors.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive
the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us
and we will use your preferred ways.
> We have a large stock and the prices are variable, so
sometimes the prices we post are not accurate. If needed, please
contact us for specific prices.
Liability:
WTL is not liable for any personal injury or property damage
resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this
equipment and to verify equipment is
compliance to their machinery.
