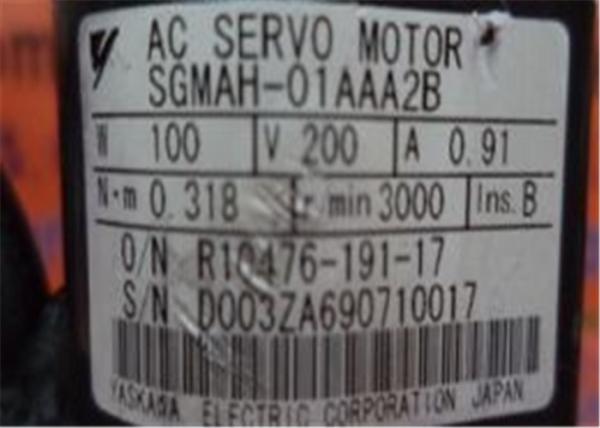

Industrial 0.91A Servo Motor Made in Japan Japan Yaskawa Servo Motor 200V SGMAH-01AAA2B

Quick Details
Brand Name:Yaskawa
Model Number:SGMAH-01AAA2B
Power : 100W
Voltage: 200V
Current: 0.91A
N.m: 0.318
r/min : 3000
Ins : B
Place of Origin:Japan
Efficiency:IE 1




OTHER SUPERIOR PRODUCTS

Similar Products

Stepping Modes
The following are the most common drive modes.
• Wave Drive (1 phase on)
• Full Step Drive (2 phases on)
• Half Step Drive (1 & 2 phases on)
• Microstepping (Continuously
varying motor currents)
For the following discussions please refer to the figure 6.
In Wave Drive only one winding is energized at any given time. The stator is energized according to the
sequence A → B → A → B and the rotor steps from position 8 → 2 → 4 → 6. For unipolar and bipolar wound motors with the same winding parameters this excitation mode would result in the same mechanical position. The disadvantage of this drive mode is that in the unipolar wound motor you are only using 25% and in the bipolar motor only 50% of the total motor winding at any given time. This means that you are not getting the maximum torque output from the motor




In Full Step Drive you are energizing two phases at any given time. The stator is energized according to
the sequence AB → AB → AB → AB and the rotor steps from position 1 → 3 → 5 → 7 . Full step mode results in the same angular movement as 1 phase on drive but the mechanical position is offset by one half of a full step. The torque output of the unipolar wound motor is lower than the bipolar motor (for motors with the same winding parameters) since the unipolar motor uses only 50% of the available winding while the bipolar motor uses the entire winding.
Half Step Drive combines both wave and full step (1&2 phases on) drive modes. Every second step only
one phase is energized and during the other steps one phase on each stator.
The stator is energized according to the sequence AB → B → AB → A → AB → B → AB → A and the
rotor steps from position 1 → 2 → 3 → 4 → 5 → 6 → 7 → 8. This results in angular movements that are half of those in 1- or 2-phases-on drive modes. Half stepping can reduce a phenomena referred to as resonance
which can be experienced in 1- or 2- phases-on drive modes.




SYNCHRONOUS SPEED
The speed with which the stator magnetic field rotates, which will determine the speed of
the rotor, is called the Synchronous Speed (SS). The SS is a function of the frequency
of the power source and the number of poles (pole pairs) in the motor. The relationship
to calculate the SS of an induction motor is:
1 SS = (120 X f) / P
Where:
SS = Synchronous Speed (RPM)
f = frequency (cycles / second) = 60
P = number of poles (pole pairs)
