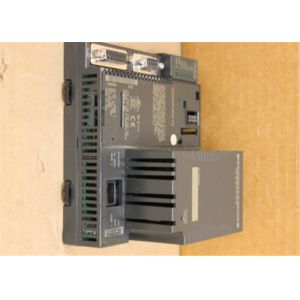

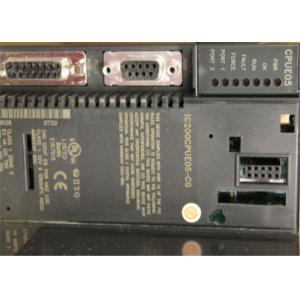

Redundant Power Supply Module GE Fanuc IC200CPUE05 CPUW/ ETHERNET
CONFIGURABLE MEMORY
Station Manager Functionality
Built-in Station Manager functionality permits on-line diagnostic
andsupervisory access through either Port 1 or via Ethernet.
Station
Manager services include:
- An interactive set of commands for interrogating and controlling
the station.
- Unrestricted access to observe internal statistics, an exception
log, and configuration parameters.
- Password security for commands that change station parameters or
operation.
- Use of the Station Manager function requires a separate computer
terminal or terminal emulator.
TheCPU supports up to 32 simultaneous Ethernet Global
Dataexchanges. Global Data exchanges are configured using the PLC
programming software, then stored to the PLC. Both Produced and
Consumed exchanges may be configured. Supports up to 1200data
ranges across all Ethernet Global Data exchanges, andsupports
selective consumption of Ethernet Global Data exchanges.
Access CPU data from a host computer or other GE Fanuc PLCs. CPU
supports up to eight simultaneous SRTP Server connections for use
by other SRTP client devices on the Ethernet network.
Communicate simultaneously to multiple devices. The multiplexing
capabilities of the Ethernet interface, along with the Ethernet
network’s high capacity, allow the CPU to communicate with several
other devices at the same time.
Indirectly attach to other Local Area Networks and/or wide area
networks via third party IP routers. Communicate with remote PLCs
and other nodes via an IP Router.
Communicate with remote computers via PPP (Point-to-Point Protocol)
or SLIP (Serial Line Protocol) using modems and/or serial lines.
Using third party PPP or SLIP devices, a remote host computer can
be attached to a TCP/IP network.
Specifications
Size Width: 4.95” (126mm) - along DIN rail
Length: 5.04” (128mm)
Depth: 2.72” (69.1mm)
Program storage System flash, battery-backed RAM
Power Supply current consumption with no serial port converter or EZ
Program Store device 5V uses 220mA
Power Supply current consumption with serial port converter or EZ
Program Store device
5V uses: 320mA
3.3V uses: 570mA
Floating point yes
Boolean execution speed 0.8 ms/K (typical)
Realtime clock accuracy (for timerfunctions)
100ppm (0.01%) or +/- 9sec/day
Time of day clock accuracy 23ppm (0.0023%) or +/- 2sec/day @ 30C.
100ppm (0.01%) or +/- 9sec/day @ full temperature range
Embedded communications RS-232, RS-485, Ethernet
Configurable memory 64K bytes maximum
Ethernet Interface Specifications
Ethernet data rate 10Mbps (half- or full-duplex)
Ethernet port RJ-45, UTP
Number of SRTP server connections 8
Number of Ethernet Global Data
(EGD) configuration-based exchanges 32
EGD Exchange limits 100 data ranges per exchange 1400 bytes of data per exchange
EGD Time Synchronization NTP
EGD Selective Consumption yes
Load EGD configuration from PLC to programmer yes
Remote Station Manager over UDP yes
Local Station Manager (RS-232) via CPU Port 1
Similar Products
IC3600ALTC1 GE SPEEDTRONIC
IC3600ALTD1 LINEAR TAPE
IC3600AMIA1 ANALOG MUX BD
IC3600AMIB1 CARD SINGLE END MULT
IC3600AMIP1 SINGLE END MULTIPLEX IC3600AMIP
IC3600AMLB1 IC3600AMLB
IC3600AMLG1 ANALOG MUX BD IC3600AMLG
IC3600AOAA1 3-STAGE-OPER-AMPL
IC3600AOAA2 OP AMP BOARD IC3600AOAA
IC3600AOAB1 5-STAGE-OPER-AMPL
IC3600AOAC1 OP AMP BOARD IC3600AOAC
IC3600AOAD1 SUMMING AMP BD
IC3600AOAF1 OP AMP BOARD
IC3600AOAF2 OPERATIONAL AMPL
IC3600AOAH1 OP AMP BOARD IC3600AOAH
IC3600AOAJ1 OP AMP
IC3600AOAK1 CARD
IC3600AOAL1 OP AMP BOARD IC3600AOAL
IC3600AOAL2 OP AMP BOARD
IC3600AOTM1 T/C DETECTOR BD
IC3600APAA1 POWER AMP BOARD
IC3600APAB1 POWER AMP BOARD IC3600APAB
IC3600APSG1 GAYNO-POWER-SUPPLY-C
IC3600ARFA1 LOGIC/ANALOG BD IC3600ARFA
IC3600ARHA1 ANALOG READ AND HOLD
IC3600ARHA2 READ/HOLD BOARD
IC3600ARHB1 ANALOG READ AND HOLD
IC3600ARHB2 READ/HOLD BOARD
IC3600ARTM2 R/T CONVERTER
IC3600ARTM4 R/T CONVERTER
IC3600AVAIA1
IC3600AVIA1 VOLTAGE ISOL BD IC3600AVIA
IC3600AVIB1 VOLTAGE ISOLATOR
IC3600AVIC1 VOLTAGE ISOLATOR
IC3600AVLA1 INPUT-VOLT-LIMITER
Features
Supports up to 64 modules with up to 2048 I/O points
Can be either autoconfigured or configured from a programmerusing
configuration software
64KB of configurable memory for the application program,hardware
configuration, registers (%R), analog inputs (%AI),and analog
outputs (%AQ)
Programming in Ladder Diagram and Instruction List
Non-volatile flash memory for program storage
Battery backup for program, data, and time of day clock
Super capacitor provides power to memory for 1 hour
- Over 1 hour, backup battery protects memory contents upto 6 months.
- Backup battery has shelf life of 5 years when not in use.
- Run/Stop switch
- Floating point (real) data functions
Embedded RS-232, RS-485, and Ethernet communications
Supports EZ Program Store device
70mm height when mounted on DIN rail with power supply (sold
separately)
The built-in Ethernet interface makes it possible to communicate on
a 10BaseT network. The CPUE05 supports half-duplex and full-duplex
operation; operation is automatically sensed without user
configuration. Using 10/100 hubs allows communication on a network
containing 100Mb devices.
Send and receive Ethernet Global Data. Ethernet Global Data canbe
used for highly efficient periodic data transfer on the LAN.
Ethernet LAN Port
The 10BaseT twisted pair cable must meet applicable IEEE 802
standards. Category 5 is recommended
