    Compressed Air AC Servo Amplifier Guiding and Stopping Cylinders Norgren M/61050/M/50 Port size G1/4

    Ask Lasest Price
    Brand Name : Norgren
    Model Number : M/61050/M/50
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 5-8 work days
    Certification : dose not supply
    • Product Details
    • Company Profile

    Compressed Air AC Servo Amplifier Guiding and Stopping Cylinders Norgren M/61050/M/50 Port size G1/4

    AC Servo Amplifier Guiding and Stopping Cylinders Norgren M/61050/M/50 Port size G1/4 Cylinder diameter 50 mm


    ITEM: M/61050/M/50

    • Guiding accuracy ± 0,02 mm
    • Non-rotation accuracy ± 0,02°
    • Integrated heavy duty guide rods
    • Easy installation
    • Magnetic piston as standard
    • Buffer pad for noise reduction

    Operation:Double acting
    Stroke length:50 mm
    Port size:G1/4
    Cylinder diameter:50 mm

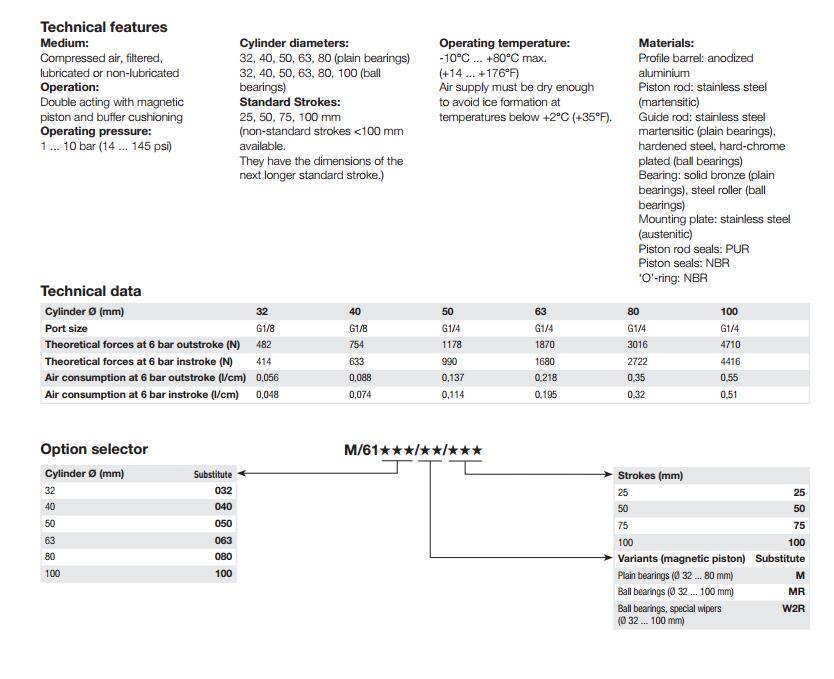

    Product Detail


    Medium:Compressed air
    Port size:G1/4
    Operation:Double acting
    Operating pressure:1 ... 10 bar
    Operating temperature:-10 ... 80 °C
    Cylinder diameter:50 mm
    Stroke length:50 mm
    Material - Bearings:Plain bearings
    Material - Buffer:Polyurethane
    Material - Piston head seals:Nitrile rubber
    Material - Piston rod:Stainless steel (Martensitic)


    Other Models

    M/61032/MR/50M/61040/M/50
    M/61040/M/100M/61063/M/100
    M/61050/MR/25M/61063/M/75
    M/61040/M/25M/61050/M/75
    M/61032/M/100M/60116/M/100
    M/60116/M/50M/61032/M/75
    M/60111/M/75M/61032/M/25
    M/61050/M/100M/60111/M/50
    M/60140/M/175M/61032/M/50
    M/61063/M/50M/61050/M/25
    M/61040/M/75M/60125/M/100
    M/60125/M/50M/61032/MR/25
    M/61063/M/25M/61080/M/50
    M/60125/M/125M/60116/M/25
    M/60140/M/100M/60125/M/175
    M/61080/M/75M/60125/M/150
    M/60132/M/100M/60132/M/150
    M/60116/M/75M/61080/M/100
    M/60132/M/200M/60116/M/125
    M/61080/M/25M/61050/MR/50
    M/60132/M/75M/60132/M/125
    M/60132/M/175M/60125/M/75
    M/60140/M/200M/61040/MR/50
    M/61040/MR/25M/60140/M/150
    M/60140/M/125M/60111/M/25
