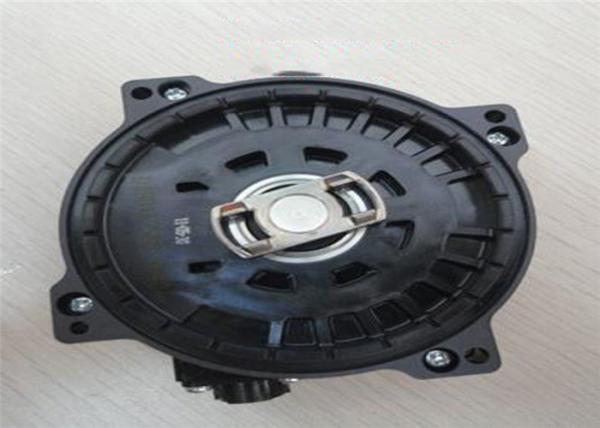

Servo Motor Encoder Yaskawa Encoder UTTIH-B20FK for SGMGV-09ADC61 AC Servo Motor

Where can I use an encoder?

Encoders are used in all types of motion sensing applications, including machine tooling, semiconductor positioning and multi-axis positioning. All Koyo encoders feature a reinforced aluminum diecast casing and come equipped with a two-meter cable or MS connector. Use the incremental encoders with our PLC high-speed counter modules1 for accurate position monitoring and control. Or use our absolute encoders to monitor position with gray code and standard PLC DC inputs

Why buy an encoder from us?

There are several distinct advantages to purchasing your encoder from WtL:

Price

As with all of our product lines, our prices are often well below the list prices of traditional automation suppliers. Our direct business model allows us to operate more efficiently than other suppliers and pass the savings on to you.

Quality

All encoders carry a 1-year warranty, and a 30-day moneyback guarantee. If for any reason you are not satisfied with your purchase, send it back and we will refund your money.

QUICK DETAILS

1. Brand :Yaskawa
2. Model :UTTIH-B20FK
3. Place of Origin :Japan

DESCRIPTION

• Servo Motor Encoder
• Yaskawa Electric

• AC Servo Motor

Wiring diagrams

Totem-pole (push-pull) connections

Cable shield is not connected to the encoder body;enclosure is grounded through the 0V wire

Line driver connections

Cable shield is not connected to the encoder body; enclosure is grounded through the 0V wire

The following are the external dimensions of both incremental and absolute medium duty encoders and optional mounting accessories.

Solid-shaft Incremental and Absolute Encoders (TRD-N, TRD-NA)

Hollow-shaft Incremental Encoders only (TRD-NH)

Encoders can be used with controllers for position monitoring or control; be sure to evaluate product specifications to ensure application compatibility
